VD 50 injection machine can fill all values between 5 ml and 50 ml as standart. And it can fill all values between 15 ml and 150 ml as optional with extra piston.

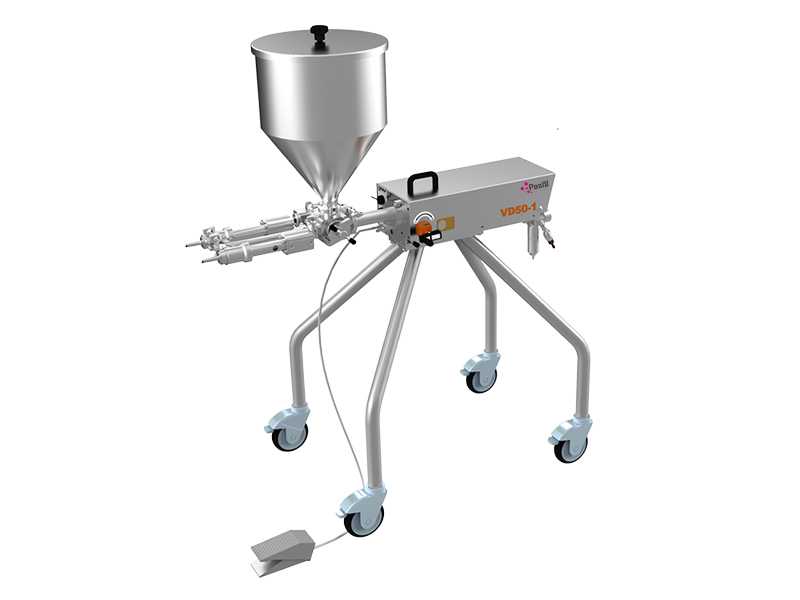

VD 50 Cream Injection Machine General Features

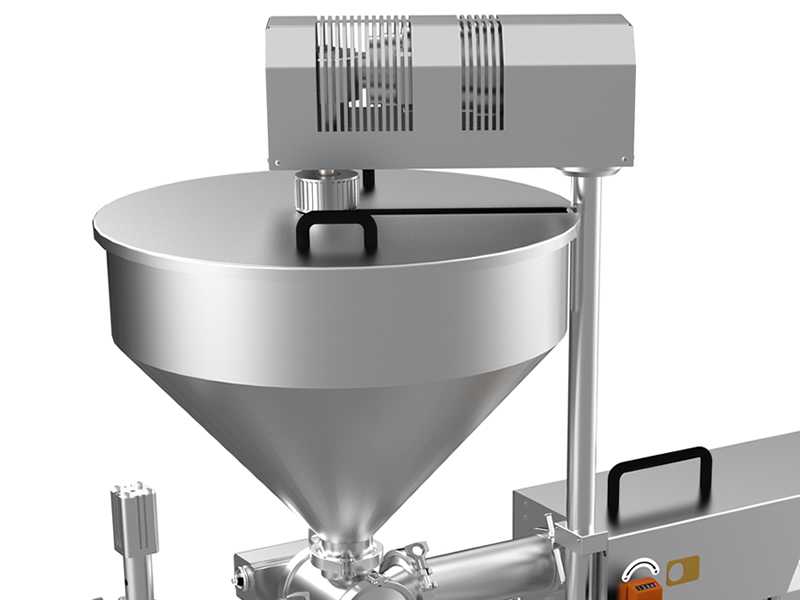

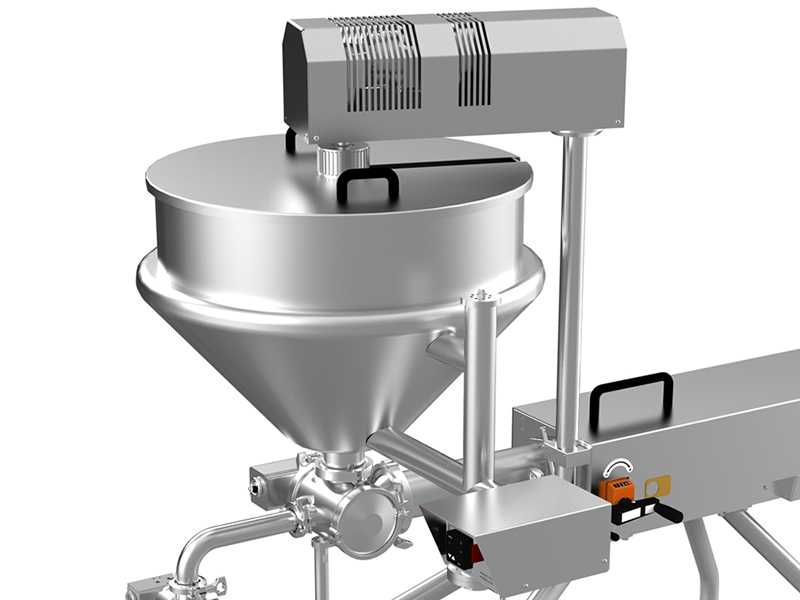

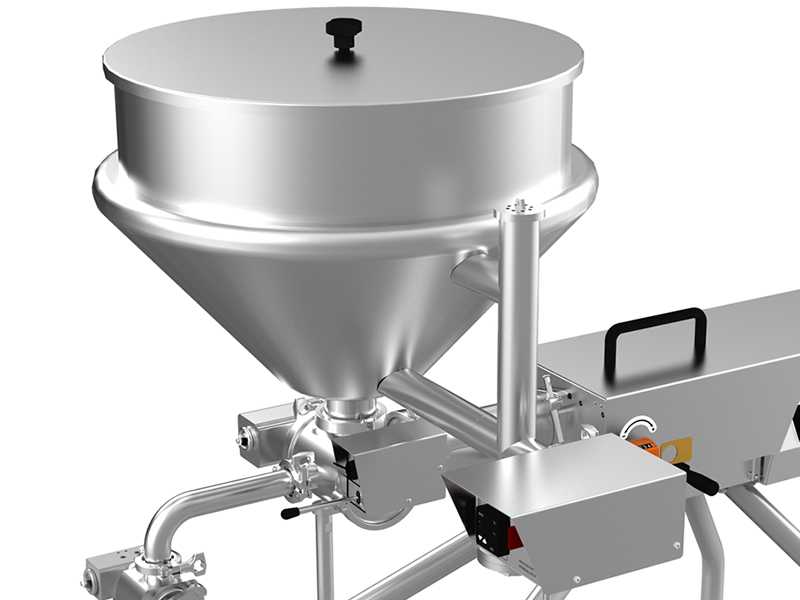

VD 50 filling machine works with pneumatic system. Primes the product from its’ 30 lt. stainless steel hopper above.
VD 50 bakery filling machine present to customer; easy to adjust and record the filling range by the numerator and the hand wheels. A detailed instruction manual for each model is available. Filling Accuracy : ± %1 and Operating temperature +5º - +90º .
VD 50 filling machine parts that contact with the product are 316 L stainless steel. The other parts are aluminium and 304 L stainless steel. The parts on the machine are connected by tri –clamps. High surface smoothness and argon arc welding technology prevents bacteria growth.

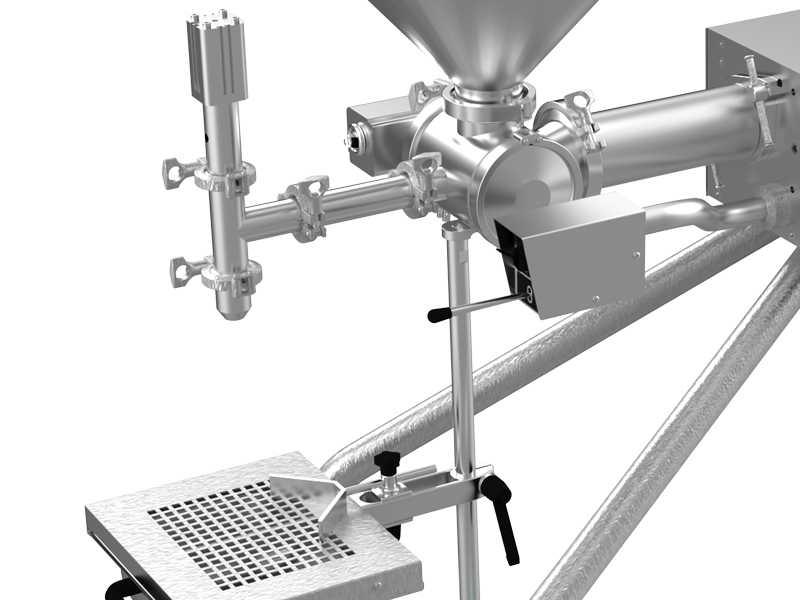

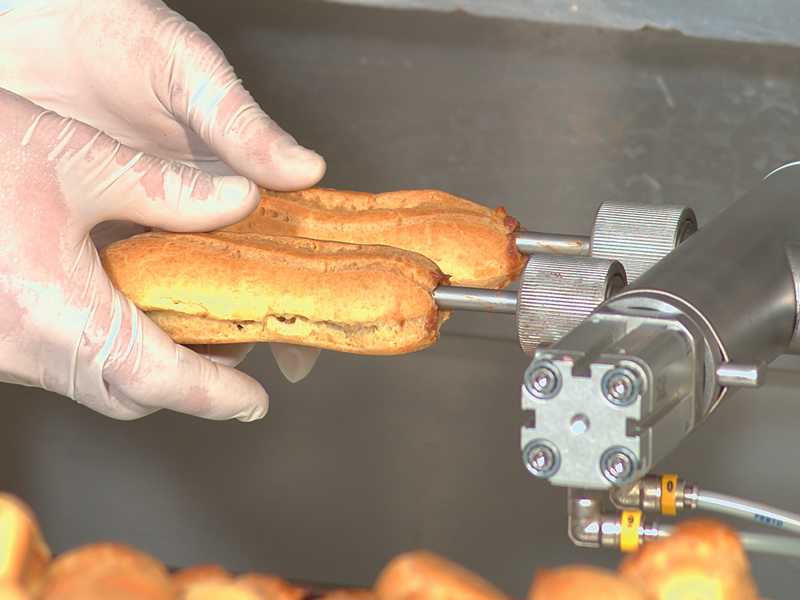

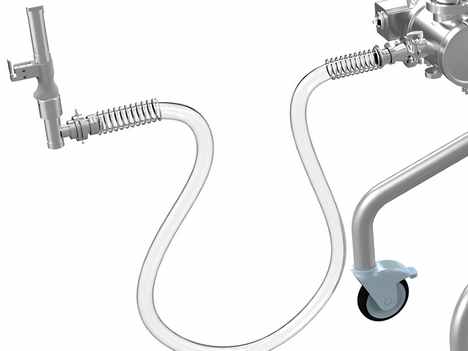

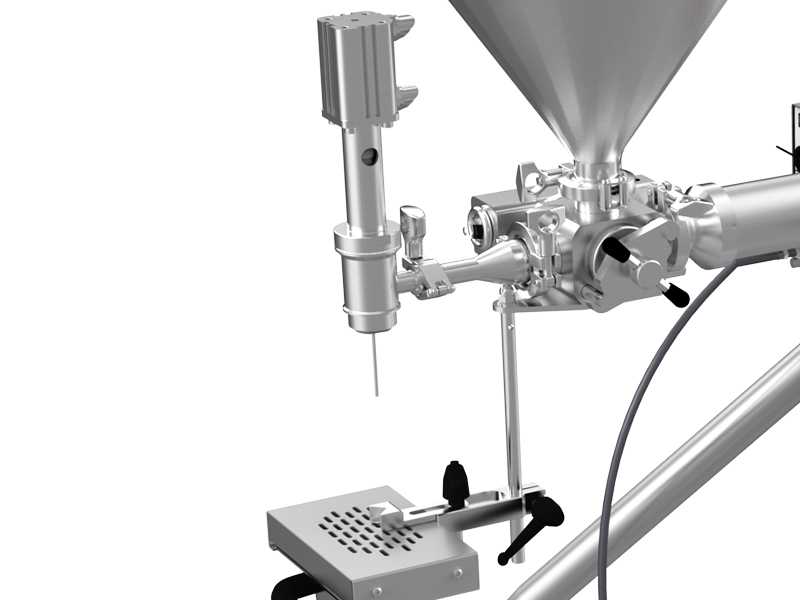

VD 50 bakery filling machine have Interchangeable nozzles for viscous and liquid products with anti-dropping system.
VD 50 cream injection machine nozzle, main valve and the filling piston are designed for an easy-cleaning. They can be dismantled easily without using any tool. The machine is exproof system.

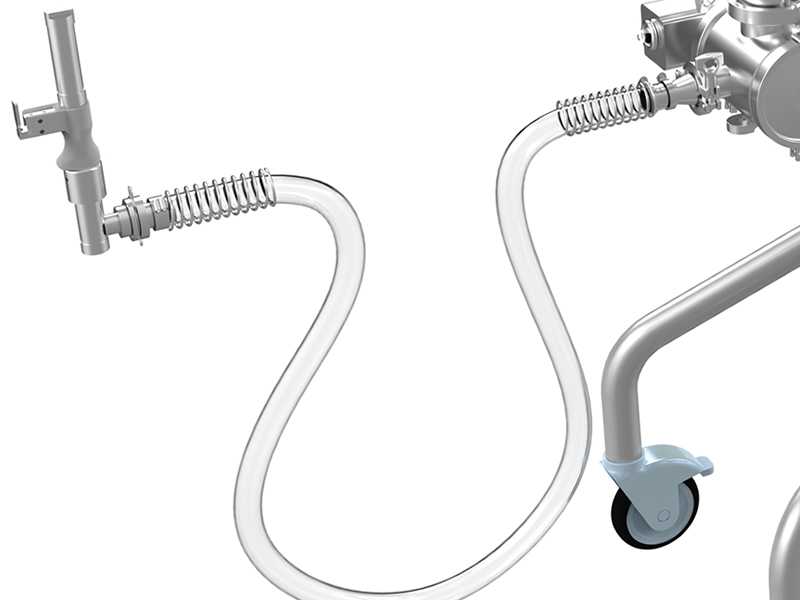

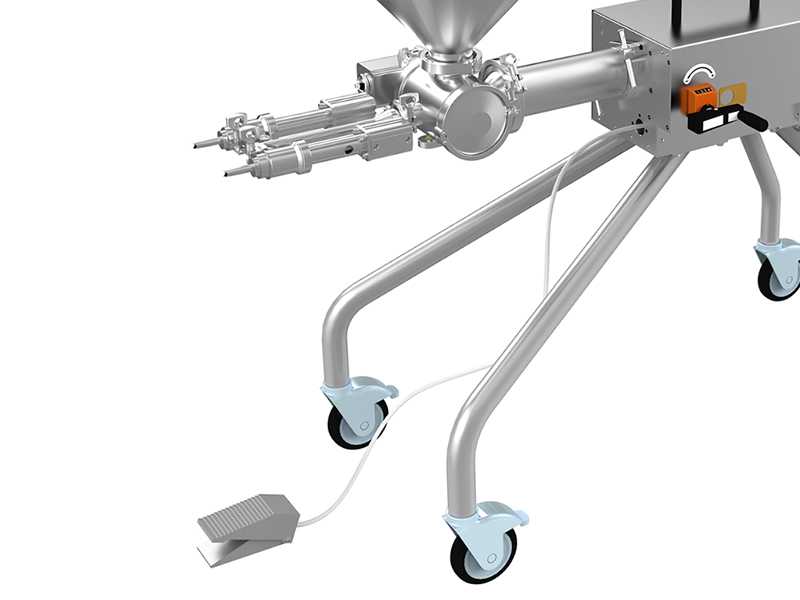

VD 50 filling machine stands on a stainless steel frame which is supprted by 4 castors, it can be easily move to anywhere.
VD 50 cream injection machine seals are manufactured from teflon ,viton or polyethylene according to the product to be filled.
VD 50 Cream Injection Machine Technical Features

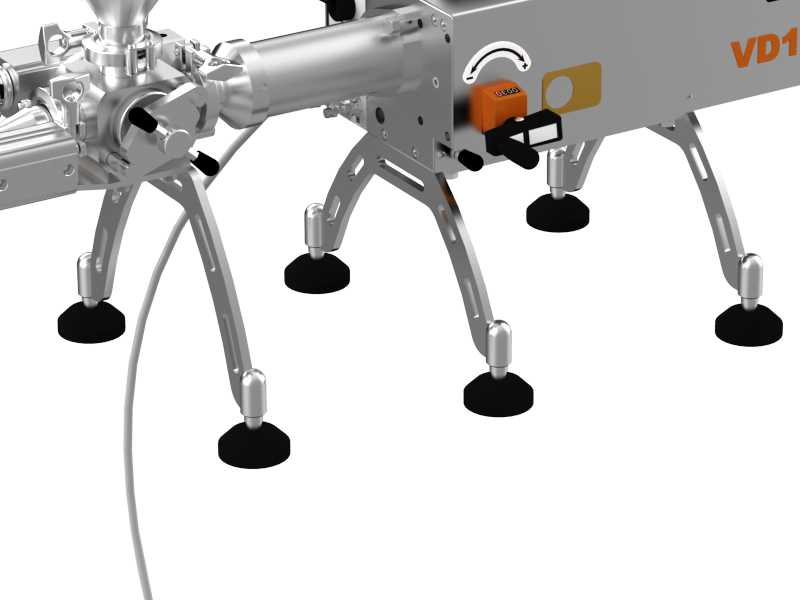

370 x 980 x 800 mm (with short legs and without nozzle)
